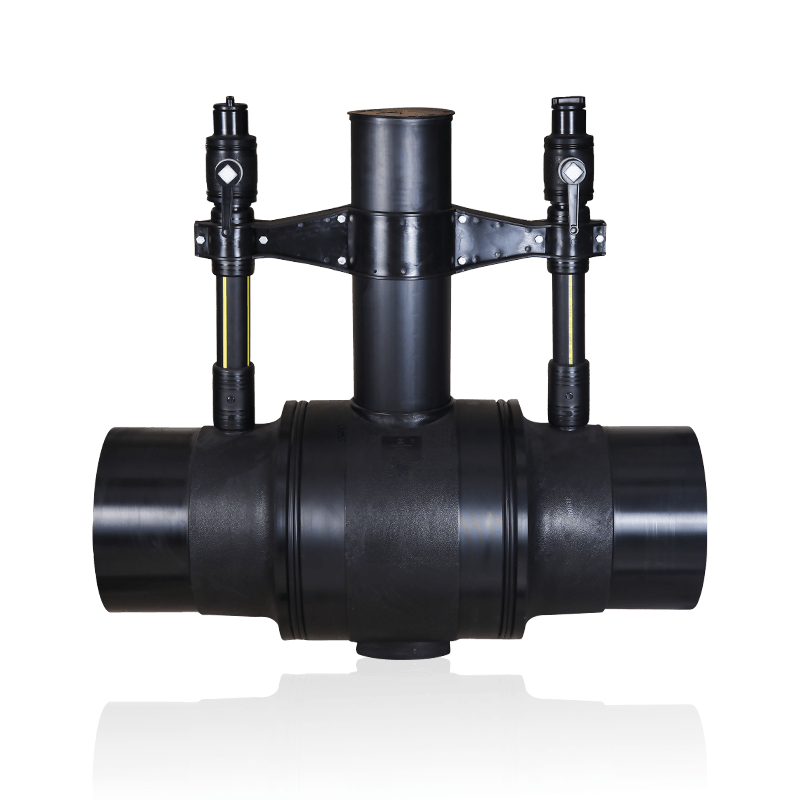

Two-Purge Ball Valve (SDR11、SDR17 )

Home / Product / Hdpe Ball Valve / Two-Purge Ball Valve (SDR11、SDR17 )

Two-Purge Ball Valve (SDR11、SDR17 )

There are more than 2000 product specifications in five series of electric melting, hot melting, welding, steel-plastic conversion, and ball valve. Borealis imported polyethylene (PE) special blending ingredients are used in the industry with many varieties and complete specifications.

Product Description

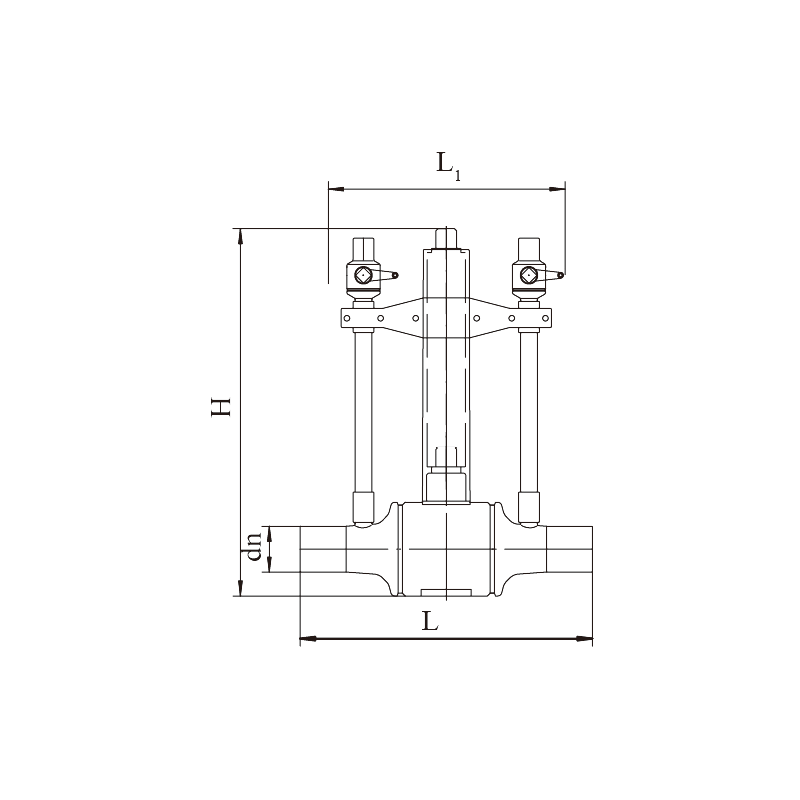

Specification Dn Item dn L L1 H
50 VS50 50 540 400 760
63 VS63 63 540 400 760
90 VS90 90 700 520 840
110 VS110 110 700 520 840
125 VS125 125 700 520 840
160 VS160 160 860 600 940
200 VS200 200 860 600 940
250 VS250 250 1015 670 980
315 VS315 315 1050 800 1120
